Usable bandwidth (-10dB) 55 Hz - 20 kHz ([12XTA_FR] preset) Nominal directivity (-6dB) 90° Axi-symmetric Maximum SPL1 133 dB ([12XTA_FI] preset) RMS handling capacity 12XT Passive: 380 W ([12XTP_FI] preset) 12XT Active: LF: 290 W - HF: 135 W ([12XTA_FI] preset) Components LF: 1 x 12’’ weather-resistant transducer HF: 1 x 3’’ diaphragm compression driver Nominal impedance: 8 ohms (passive), 2 x 8 ohms (active) Physical data H x W x D: 540 x 410 x 389 mm - 21.3 x 16.1 x 15.3 in. Wedge angle: 30° or 60° from vertical Connectors: 2 x 4-point Speakon® Passive mode +1 -1 Active mode +1 - 1 & +2 -2

Description Passive 2-way coaxial enclosure Usable bandwidth (-10 dB) 95 Hz – 20 kHz ([5XT] preset) Maximum SPL1 121 dB ([5XT] preset) Nominal directivity 110° axisymmetric Transducers LF: 1 × 5” weather resistant, bass-reflex HF: 1 × 1” compression driver Nominal impedance 16 Ω Connectors IN: 1 × 4-point SpeakON® and screw terminal LINK: 1 × 4-point SpeakON® and screw terminal Rigging and handling 1 × 3/8” insert for microphone stand 2 × M6 inserts for ETR5 U-bracket IP30

Kiva is an ultra-lightweight modular line source which can be deployed with or without a low frequency extension, giving it a remarkable capacity to adjust to long throw rental production or fixed integration constraints. With its sleek, compact and passive design, this variable Wavefront Sculpture Technology line source delivers an exceptional performance to format ratio. Deployed without its low frequency extension, Kiva offers a discreet and lightweight solution that delivers crisp sound, perfectly suited to enhancing speech and vocal programs for theater and special events, especially in environments with strict visual or rigging constraints. When deployed with the SB15m subwoofer, it delivers a full range performance that is excellent for contemporary music programs. Specs: Frequency Response (-5dB Standard) - 80 Hz - 20 kHz Max Sound Pressure (1m Free Field) - 130 dB Nominal Dispersion Angle (Horizontal) - 100° (From 500 Hz) Dimensions (H x W x D) - 175/103 x 520 x 358 mm Weight (Kg) - 13

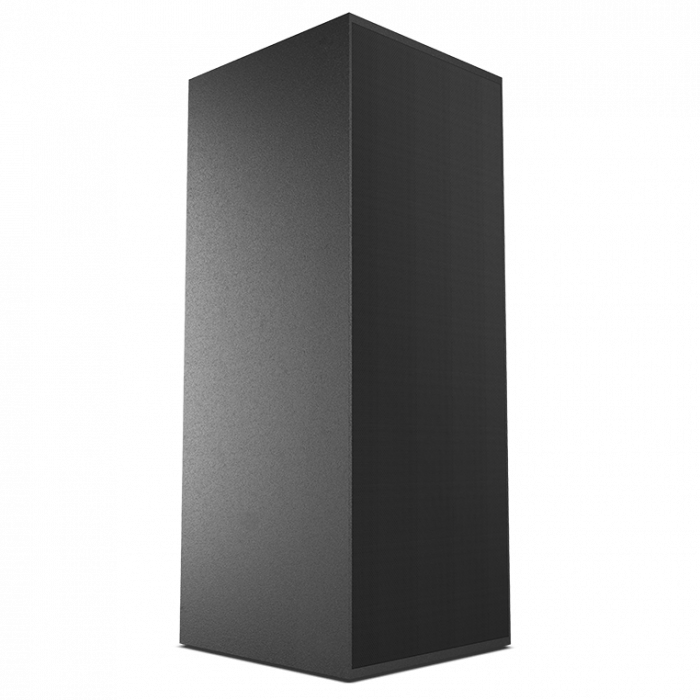

L-Acoustics subwoofers complement systems in applications where extended bandwidth is required. All subs incorporate high excursion drivers, ultra-low vibration walls and laminar airflow L-Vents with a flared profile, resulting in dramatic reduction of port noise, maximized dynamics and power handling and an exceptional level of performance. L-Acoustics subwoofers can be deployed in diverse modes, making them versatile enough to address any rental or fixed installation application. Engineers and sound designers can choose from standard or cardioid configurations, creating a variety of symmetric and asymmetric directivity patterns adapted to each specific design. Specs: Low Frequency Limit (-10dB) - 40 Hz Maximum SPL - 135 dB Polar Pattern - OMNI / CARDIO Dimensions (H x W x D) - 493 x 579 x 520 mm Weight (Kg) - 36
